23. Distillation modeling & design#
Distillation is the most widely used unit operation in the chemical industry, with applications in petrochemicals, pharmaceuticals, and biorefining. For the separation of almost any mixture, distillation may be a viable option. Because of this, new separation technologies (e.g., membrane, adsorption) are often compared against distillation-based processes. In this tutorial, we will design and simulate distillation columns for separating hydrocarbons and purifying small organic molecules.
23.1. Shortcut distillation models#
Distillation is a complex unit to model. Given M stages and N chemicals, we get M * (2 * N + 1) nonlinear and highly coupled equations for material, energy, and phase equilibria. Optimizing a distillation column is even more challenging. As a start, we can use “shortcut” methods which use simplifying assumptions to design and model a distillation column. Two common shortcut methods include the McCabe-Thiele methods for binary (2-component) distillation and the Fenske-Underwood-Gilliland method for multicomponent distillation. These methods can be surprisingly accurate (in some cases) and are often used for agile analyses where high-fidelity is not required.
23.1.1. Binary distillation with McCabe-Thiele#
The McCabe-Thiele method assumes that for every mole of liquid vaporized, a mole of vapor is condensed (i.e., constant molar overflow). For a two-component system under this assumption, each stage can be solved sequentially using a bubble/dew point calculation and a simple mass balance. This assumption can be relatively good for components with similar heats of vaporitation.
In BioSTEAM, we extend the McCabe-Thiele method for 3 or more componets by assuming that chemicals which are more volatile than the light key will partition to the distillate while chemicals which are heavier than the heavy key will partition to the bottoms product. This can be a good assumption if the non-key chemicals are present in trace amounts.
Let’s model a distillation column for separating ethanol from beer (e.g., from fermenting ethanol):
[1]:
import biosteam as bst
import numpy as np
bst.nbtutorial()
# First set the property package
bst.settings.set_thermo(['Water', 'Ethanol', 'Glycerol', 'Yeast'], db='BioSTEAM')
# Create the feed at the bubble point
feed = bst.Stream(
Water=1.08e+03,
Ethanol=586,
Glycerol=10,
Yeast=50,
units='kg/hr',
)
feed.vle(V=0, P=101325)
# Create distillation column
McCabeThiele = bst.BinaryDistillation(
ins=feed,
outs=('distillate', 'bottoms_product'),
LHK=('Ethanol', 'Water'), # Light and heavy keys
y_top=0.79, # Light key composition at the distillate
x_bot=0.001, # Light key composition at the bottoms product
k=1.25, # Ratio of actual reflux over minimum reflux
is_divided=True, # Whether the rectifying and stripping sections are divided
)
McCabeThiele.simulate()
McCabeThiele.diagram()
McCabeThiele.show()
BinaryDistillation: McCabeThiele
ins...
[0] feed
phases: ('g', 'l'), T: 356.95 K, P: 101325 Pa
flow (kmol/hr): (l) Water 59.9
Ethanol 12.7
Glycerol 0.109
Yeast 2.21
outs...
[0] distillate
phase: 'g', T: 351.63 K, P: 101325 Pa
flow (kmol/hr): Water 3.37
Ethanol 12.7
[1] bottoms_product
phase: 'l', T: 372.85 K, P: 101325 Pa
flow (kmol/hr): Water 56.6
Ethanol 0.0566
Glycerol 0.109
Yeast 2.21
[2]:
McCabeThiele.results()
[2]:
| Divided Distillation Column | Units | McCabeThiele | |
|---|---|---|---|
| Electricity | Power | kW | 0.139 |
| Cost | USD/hr | 0.0109 | |
| Cooling water | Duty | kJ/hr | -6.37e+05 |
| Flow | kmol/hr | 435 | |
| Cost | USD/hr | 0.212 | |
| Low pressure steam | Duty | kJ/hr | 1.4e+06 |
| Flow | kmol/hr | 36.3 | |
| Cost | USD/hr | 8.63 | |
| Design | Theoretical feed stage | 24 | |
| Theoretical stages | 29 | ||
| Minimum reflux | Ratio | 0.8 | |
| Reflux | Ratio | 1 | |
| Rectifier stages | 41 | ||
| Stripper stages | 10 | ||
| Rectifier height | ft | 73 | |
| Stripper height | ft | 27.3 | |
| Rectifier diameter | ft | 3 | |
| Stripper diameter | ft | 3 | |
| Rectifier wall thickness | in | 0.5 | |
| Stripper wall thickness | in | 0.312 | |
| Rectifier weight | lb | 9.16e+03 | |
| Stripper weight | lb | 3.6e+03 | |
| Purchase cost | Rectifier trays | USD | 2.92e+04 |
| Stripper trays | USD | 1.03e+04 | |
| Rectifier tower | USD | 5.86e+04 | |
| Stripper platform and ladders | USD | 2.13e+04 | |
| Stripper tower | USD | 3.41e+04 | |
| Rectifier platform and ladders | USD | 9.69e+03 | |
| Condenser - Double pipe | USD | 5.19e+03 | |
| Reflux drum - Vertical pressure vessel | USD | 7.58e+03 | |
| Reflux drum - Platform and ladders | USD | 1.85e+03 | |
| Pump - Pump | USD | 4.36e+03 | |
| Pump - Motor | USD | 141 | |
| Reboiler - Double pipe | USD | 5.2e+03 | |
| Total purchase cost | USD | 1.88e+05 | |
| Utility cost | USD/hr | 8.85 |
[3]:

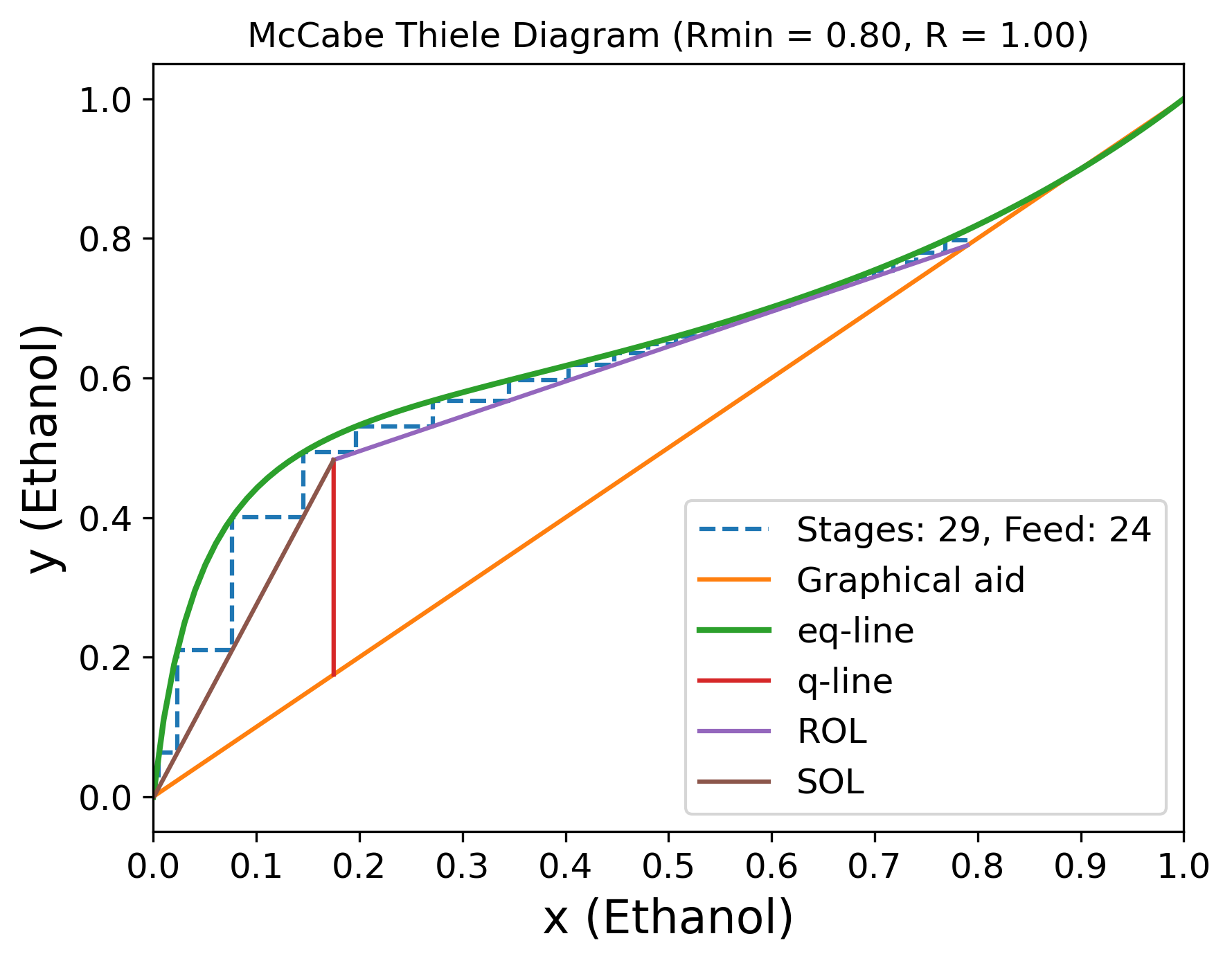

McCabeThiele.plot_stages()
[3]:
<module 'matplotlib.pyplot' from 'C:\\Users\\yoelr\\anaconda3\\Lib\\site-packages\\matplotlib\\pyplot.py'>
23.1.2. Multicomponent distillation with Fenske-Underwood-Gilliland#
The Fenske-Underwood-Gilliland assumes a constant molar overflow and an average relative volatility across stages to allow for multicomponent distillation. This method can give reasonable estimates when volatilities are “well behaved” across stages and the latent heats between chemicals are similar. However, it will give completely unreasonable results when azeotropes are present. Let’s use this shortcut method to model the separation of a hydrocarbon mixture into -C5 and C6+ fraction.
[4]:
hydrocarbons = [
'Ethane', 'Propane', 'n-Butane',
'n-Pentane', 'n-Hexane', 'n-Heptane',
'Cyclohexane', 'Cycloheptane', 'Benzene',
'Toluene', 'Hydrogen'
]
bst.settings.set_thermo(hydrocarbons, pkg='Peng Robinson')
feed = bst.Stream()
feed.imol[hydrocarbons] = 242.6 * np.array([
7.54105070e-10, 2.56035674e-06, 5.34074413e-03,
1.850257e-01, 3.06487804e-01, 1.27207300e-01,
3.97638023e-02, 6.96044980e-04, 3.35385551e-01,
9.04125972e-05, 1.00013935e-18
])
feed.vle(T=340.3, P=366463)
FUG = bst.ShortcutColumn(
ins=[feed],
outs=['distillate', 'bottoms_product'],
LHK=['Cyclohexane', 'n-Heptane'],
P=feed.P,
Lr=0.98, # Light key recovery
Hr=0.98, # Heavy key recovery
k=1.25 # Reflux to minimum reflux
)
FUG.simulate()
FUG.show('cmol100')
ShortcutColumn: FUG
ins...
[0] feed
phases: ('g', 'l'), T: 340.3 K, P: 366463 Pa
composition (%): (l) Ethane 7.54e-08
Propane 0.000256
n-Butane 0.534
n-Pentane 18.5
n-Hexane 30.6
n-Heptane 12.7
Cyclohexane 3.98
Cycloheptane 0.0696
Benzene 33.5
Toluene 0.00904
Hydrogen 1e-16
------------ 243 kmol/hr
outs...
[0] distillate
phase: 'g', T: 401.48 K, P: 366463 Pa
composition (%): n-Pentane 21.4
n-Hexane 35.5
n-Heptane 0.294
Cyclohexane 4.51
Cycloheptane 3.31e-08
Benzene 38.3
Toluene 2.47e-07
------------ 210 kmol/hr
[1] bottoms_product
phase: 'l', T: 402.88 K, P: 366463 Pa
composition (%): Ethane 5.56e-07
Propane 0.00189
n-Butane 3.94
n-Pentane 1.43e-09
n-Hexane 0.00763
n-Heptane 91.9
Cyclohexane 0.586
Cycloheptane 0.513
Benzene 2.97
Toluene 0.0667
Hydrogen 7.37e-16
------------ 32.9 kmol/hr
23.2. Rigorous distillation models#
A rigorous equilibrium column solves the complete system of equations for Material, Equilibrium, Summation, and Enthalpy (MESH). The number of stages, the split fraction of sidedraws, and the location of feeds/sidedraws must all be specified. This leaves open 2 degrees of freedom; so 2 more variables must be specified. Typically, the user specifies the flow rate of the bottoms product (relative to the feed) and the condenser reflux. Other input specifications include the reboiler boiler-ratio and the condenser/reboiler temperatures.
23.2.1. From shortcut methods to rigorous distillation#
Let’s use the results from modeling a shortcut column to design a rigorous column using the to_rigorous_column method:
[5]:
MESH = McCabeThiele.to_rigorous_column()
# Equivalent to:
# MESH = MESHDistillation(
# ins=[feed],
# outs=[distillate, bottoms_product],
# N_stages=29,
# feed_stages=[24],
# LHK=('Ethanol', 'Water'),
# stage_specifications={0: ('Reflux', 1.0), -1: ('Flow', 0.78624)},
# P=[101325 + i*690.0 for i in range(29)]
# )
MESH.simulate()
MESH.show('cmol100')
MESHDistillation: MESH
ins...
[0] feed
phases: ('g', 'l'), T: 356.95 K, P: 101325 Pa
composition (%): (l) Water 79.9
Ethanol 17
Glycerol 0.145
Yeast 2.95
-------- 75 kmol/hr
outs...
[0] distillate
phase: 'g', T: 351.45 K, P: 101325 Pa
composition (%): Water 21.2
Ethanol 78.8
------- 15.6 kmol/hr
[1] bottoms_product
phase: 'l', T: 375.7 K, P: 120645 Pa
composition (%): Water 95.3
Ethanol 0.767
Glycerol 0.183
Yeast 3.72
-------- 59.4 kmol/hr
[6]:
MESH = FUG.to_rigorous_column()
# Equivalent to:
# MESH = MESHDistillation(
# ins=[feed],
# outs=[distillate, bottoms_product],
# N_stages=42,
# feed_stages=[18],
# LHK=('Cyclohexane', 'n-Heptane'),
# stage_specifications={0: ('Reflux', 1.629), -1: ('Flow', 0.13563)},
# P=[366463.0 + i*690.0 for i in range(42)]
# )
MESH.simulate()
MESH.show('cmol100')
MESHDistillation: MESH
ins...
[0] feed
phases: ('g', 'l'), T: 340.3 K, P: 366463 Pa
composition (%): (l) Ethane 7.54e-08
Propane 0.000256
n-Butane 0.534
n-Pentane 18.5
n-Hexane 30.6
n-Heptane 12.7
Cyclohexane 3.98
Cycloheptane 0.0696
Benzene 33.5
Toluene 0.00904
Hydrogen 1e-16
------------ 243 kmol/hr
outs...
[0] distillate
phase: 'g', T: 401.19 K, P: 366463 Pa
composition (%): Ethane 8.72e-08
Propane 0.000296
n-Butane 0.618
n-Pentane 21.4
n-Hexane 35.5
n-Heptane 0.311
Cyclohexane 4.36
Cycloheptane 5.2e-08
Benzene 37.8
Toluene 3.85e-07
Hydrogen 1.16e-16
------------ 210 kmol/hr
[1] bottoms_product
phase: 'l', T: 554.64 K, P: 394753 Pa
composition (%): Ethane 1.01e-59
Propane 4.42e-37
n-Butane 1.07e-21
n-Pentane 1.96e-11
n-Hexane 0.0035
n-Heptane 91.8
Cyclohexane 1.51
Cycloheptane 0.513
Benzene 6.09
Toluene 0.0667
Hydrogen 1.16e-317
------------ 32.9 kmol/hr
23.2.2. Introduction to simulation algorithms#
When it comes to what method to use for solving distillation columns, it’s all hands on deck. Software use a range of equation tearing methods and numerical methods to solve this complex problem. BioSTEAM has the option to use the bubble-point, sum-rates, inside-out, and simultaneous-correction (equation oriented) methods:
Bubble-Point works well for normal distillation, but may fail for absoption/stripping.
Sum-Rates works great for adsorption/stripping, but is quite poor for normal distillation.
Inside-Out is one of the most robust methods for distillation in general. BioSTEAM implements two versions: one for absoption/stripping another for normal distillation.
Simultaneous-Correction (employing trust-region optimization) converges well for a broad range of problems so long as your initial guess is close enough to the solution.
BioSTEAM first tries the inside-out method by default. After initializing the column with a simple flash routine, BioSTEAM determines which version to use based on the distribution of partition coefficients. If the inside-out method fails to converge, it proceeds to try other algorithms.

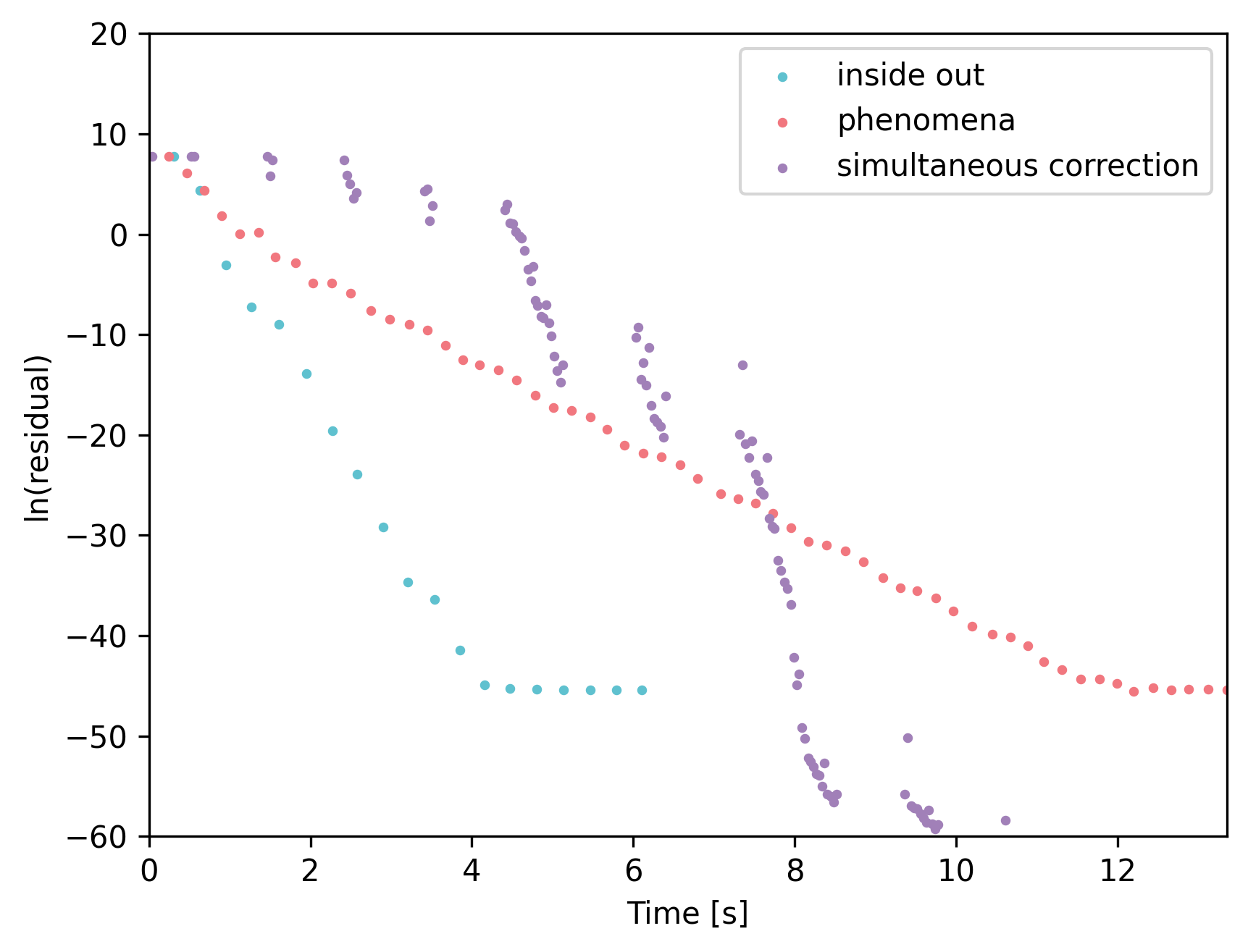

Let’s have a look at the convergence profile for the hydrocarbon distillation column under each method:
[7]:
import matplotlib.pyplot as plt
feed = bst.Stream(
phase='l', T=329.54, P=372615,
Ethane=1.829e-07, Propane=0.0006211,
**{'n-Butane': 1.296, 'n-Pentane': 44.89,
'n-Hexane': 74.35, 'n-Heptane': 30.86},
Cyclohexane=9.647, Cycloheptane=0.1689, Benzene=81.36,
Toluene=0.02193, Hydrogen=2.426e-16,
units='kmol/hr'
)
N_stages= 42
P_condenser = 351625
dP = 723.78
MESH = bst.MESHDistillation(
N_stages=N_stages, ins=[feed], feed_stages=[29],
outs=['distillate', 'bottoms'],
stage_specifications={
0: ('Reflux', 0.857),
-1: ('Flow', 0.76) # Bottoms product flow rate as a fraction of column feed
},
LHK=('Cyclohexane', 'n-Heptane'),
P=[P_condenser + i*dP for i in range(N_stages)],
use_cache=False, # No cache for profiling
)
residual_profiles = []
algorithms =(
'inside out',
'phenomena', # Equivalent to Wang-Hanke's bubble point algorithm
'simultaneous correction',
)
maxiter = 10000
maxtime = 20
residual_profiles = [
MESH.convergence_analysis(
maxiter, maxtime, algorithm=alg,
verbose=False,
plot=False,
) for alg in algorithms
]
colors = bst.utils.GG_colors
profile_colors = [colors.blue, colors.red, colors.purple, colors.green]
yticks = [-60, -50, -40, -30, -20, -10, 0, 10, 20]
fig, ax = plt.subplots(1, 1)
tmax = 0
for alg, color, residual_profile in zip(algorithms, profile_colors, residual_profiles):
tmax = max(tmax, residual_profile.time[-1])
plt.scatter(
residual_profile.time,
residual_profile.log_residual,
color=color.RGBn,
label=alg or 'default',
s=5,
)
plt.ylim([yticks[0], yticks[-1]])
plt.xlim([0, tmax])
plt.yticks(yticks)
plt.xlabel('Time [s]')
plt.ylabel('ln(residual)')
plt.legend()
plt.show()
The inside-out method is the most robust for this test case with many chemicals and stages.
23.3. Future tutorials#
Intermolecular forces within mixtures may lead to azeotropes which make vapor-liquid separations more challenging. A classic example is the separation of bioethanol from beer; a single distillation column may be infeasible due to the azeotrope. Using our knowledge on thermodynamics, however, we can find ways to either break or shift the azeotrope to achieve a feasible distillation-based separation scheme. In future examples, we we will show how pressure-swing distillation and extractive distillation can shift or break an azeotrope to allow for the separation of azeotropic mixtures.
